Highly Anticipated Digitally Controlled Analog Patchbay Solution Features 192 Point Connections
“We’re very excited to begin shipping our highly-anticipated new PATCH Series model, the PATCH XT,” says Flock Audio CEO and Founder Darren Nakonechny. “While the PATCH APP Software (OSX/Windows) has long supported the ability to intuitively combine multiple PATCH Series units, we have heard a strong demand for a self-contained and comprehensive PATCH solution for users who rely heavily on analog gear for their workflows. With 92 ins and 92 outs, the PATCH XT meets the connectivity requirements of many recording studios, broadcast control rooms, and other channel-intensive environments with a single PATCH XT unit. And for users who demand even more connectivity, PATCH APP 3.0 now facilitates the configuring of up to 10 PATCH Series units, satisfying even the most demanding integration needs.”
New features
In addition to its unprecedented 192 digitally controlled analog point connections, PATCH XT incorporates innovative features new to the PATCH Series. These include a power-saving Sleep/Wake mode function and Audio Detection integration. The PATCH XT’s Sleep/Wake mode allows users to put PATCH XT into a low-power Sleep state without fully powering down the unit, then switch it back into Wake mode instantaneously when they are ready to resume work. Sleep/Wake mode can be toggled remotely via PATCH APP. PATCH XT’s Audio Detection capability helps users easily troubleshoot their outboard hardware setups, providing visual indication within PATCH APP when a given point connection is receiving an incoming audio signal. Audio Detection is easily accessed within PATCH APP by right-clicking the PATCH XT logo next to the “Mute All” button and selecting “Audio Detection.”
The future of hardware routing
The PATCH Series has revolutionized the hybrid audio workstation by delivering digital control over a fully analog patchbay without introducing digital conversion into the audio signal path. The result allows users to leverage the sonic benefits of their favorite analog hardware without sacrificing the speed and efficiency of a digital workflow. PATCH APP 3.0 empowers users to easily create, tweak, and swap their analog signal chains without ever reaching over to their gear rack, enabling workflow possibilities never before attainable with traditional patchbays. Store routings for instantaneous recall, create mults, or audition multiple signal chains on the fly, all with a click of a mouse. Innovative and expertly designed, the PATCH Series helps users modernize their workflows and keep up with the fast pace of today’s audio industry.
PATCH XT Features
- Patented Flock Audio Matrix Technology
- 100% transparent analog signal path with no AD/DA conversion

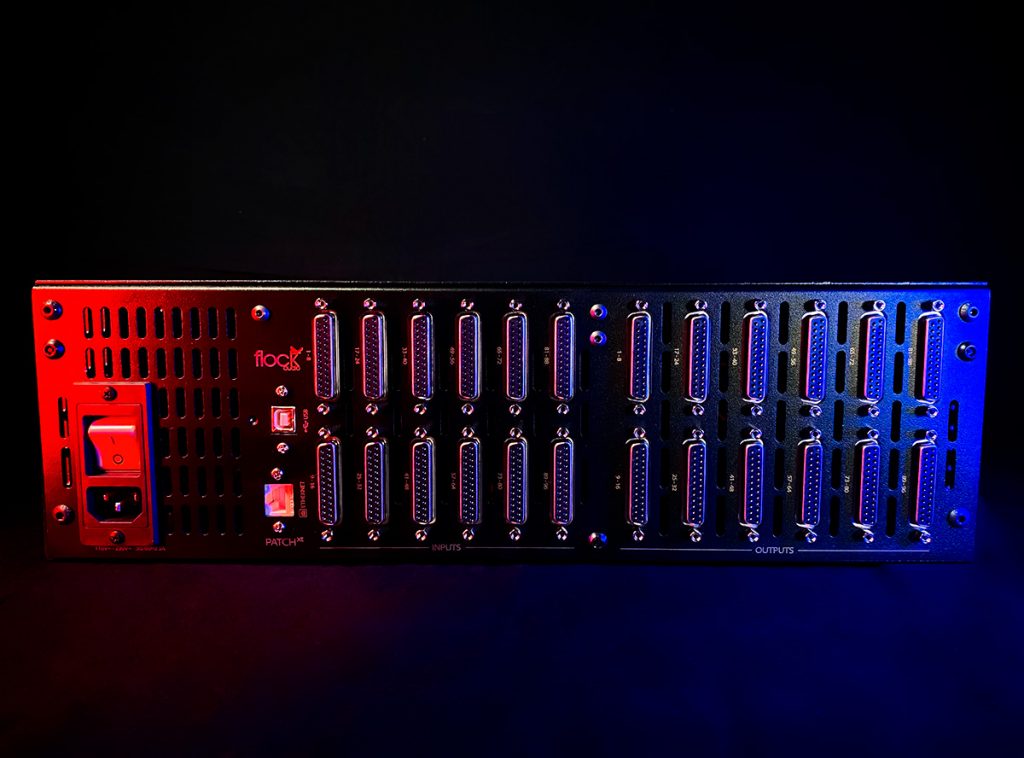

- 192 point connections – 96 inputs and 96 outputs – on DB-25/D-SUB connectors (expandable via multi-unit capabilities)
- 32 assignable independent channels of 48V phantom power

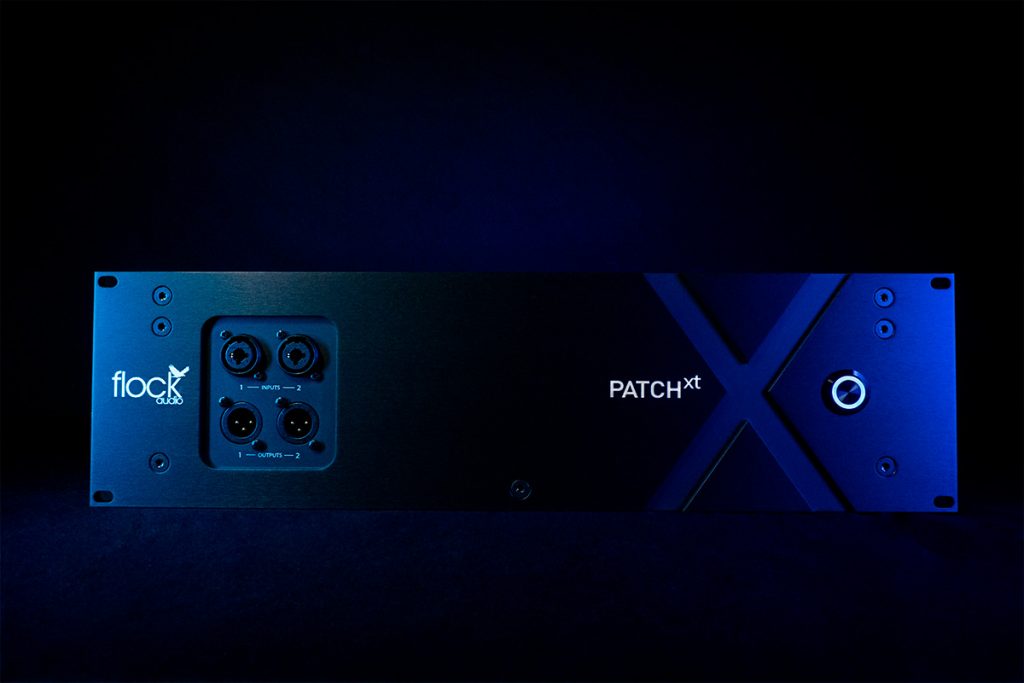

- 2 combination TRS/XLR inputs and 2 XLR outputs on front panel for quick analog connectivity
- Sleep/Wake power-saving functionality
- Audio Detection integration
- Compact 3U rack footprint
- Space-saving wall-wart-free internal designed power supply with included IEC cable
- USB and Ethernet ports for computer a d host control connectivity
- Optional rear-mount XTH Cable Hanger accessory
PATCH APP 3.0 Features
- Create, store, and recall routings in seconds
- Create complex multing combinations without impedance issues
- Multiple Unit Expansion with any PATCH Model combination and configuration
- OSX and Windows compatibility (iOS version for iPad coming soon)
For information on PATCH XT, please visit www.flockaudio.com/patchxt
About Flock Audio
Flock Audio Inc. is a pro-audio manufacturer based in Kelowna, British Columbia, Canada, founded in 2017. The company is best known for its PATCH System Series, which is a Digitally controlled, 100% Analog Patch bay routing solution for professional audio environments. For more information on Flock Audio and its products, please visit the company website at www.flockaudio.com.
